Project Details
Key Features
- Easy to learn and perfect for beginners.

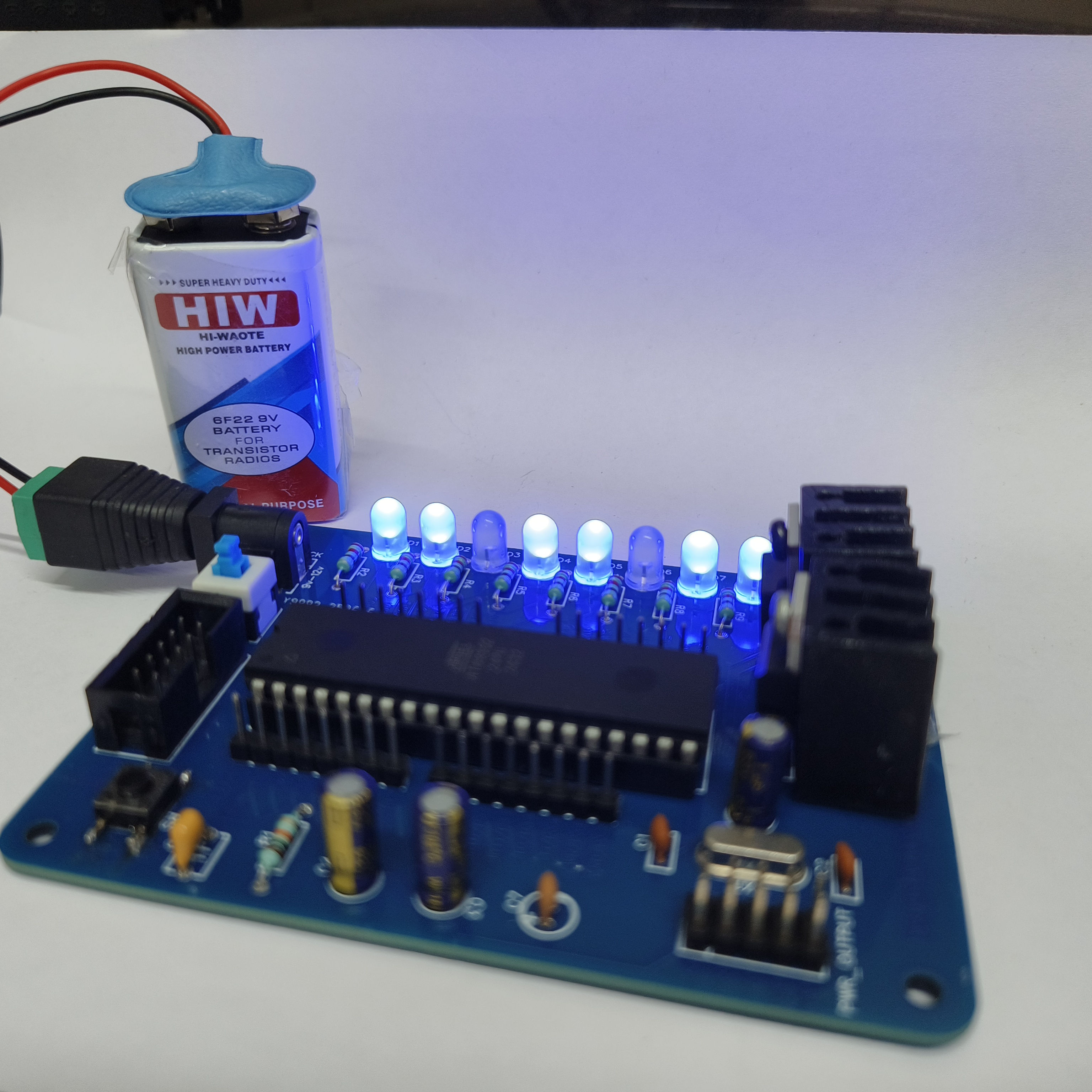

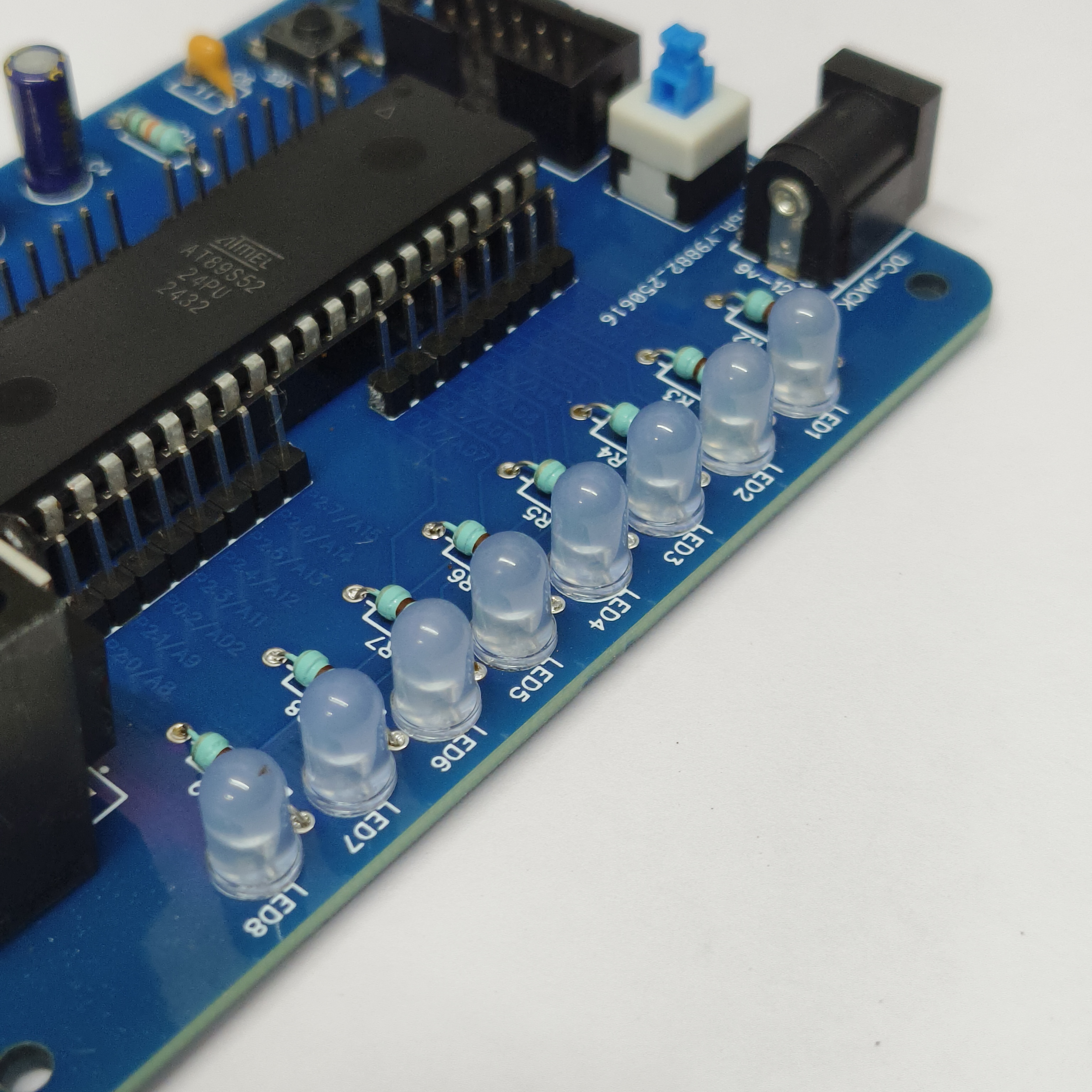

- Ready-to-use LED outputs for quick testing.
- Simple coding and upload process via USBasp.
- Convenient port headers for connecting sensors.
- Supports both 5V and 3.3V modules.
- Reliable reset and power system for smooth debugging.

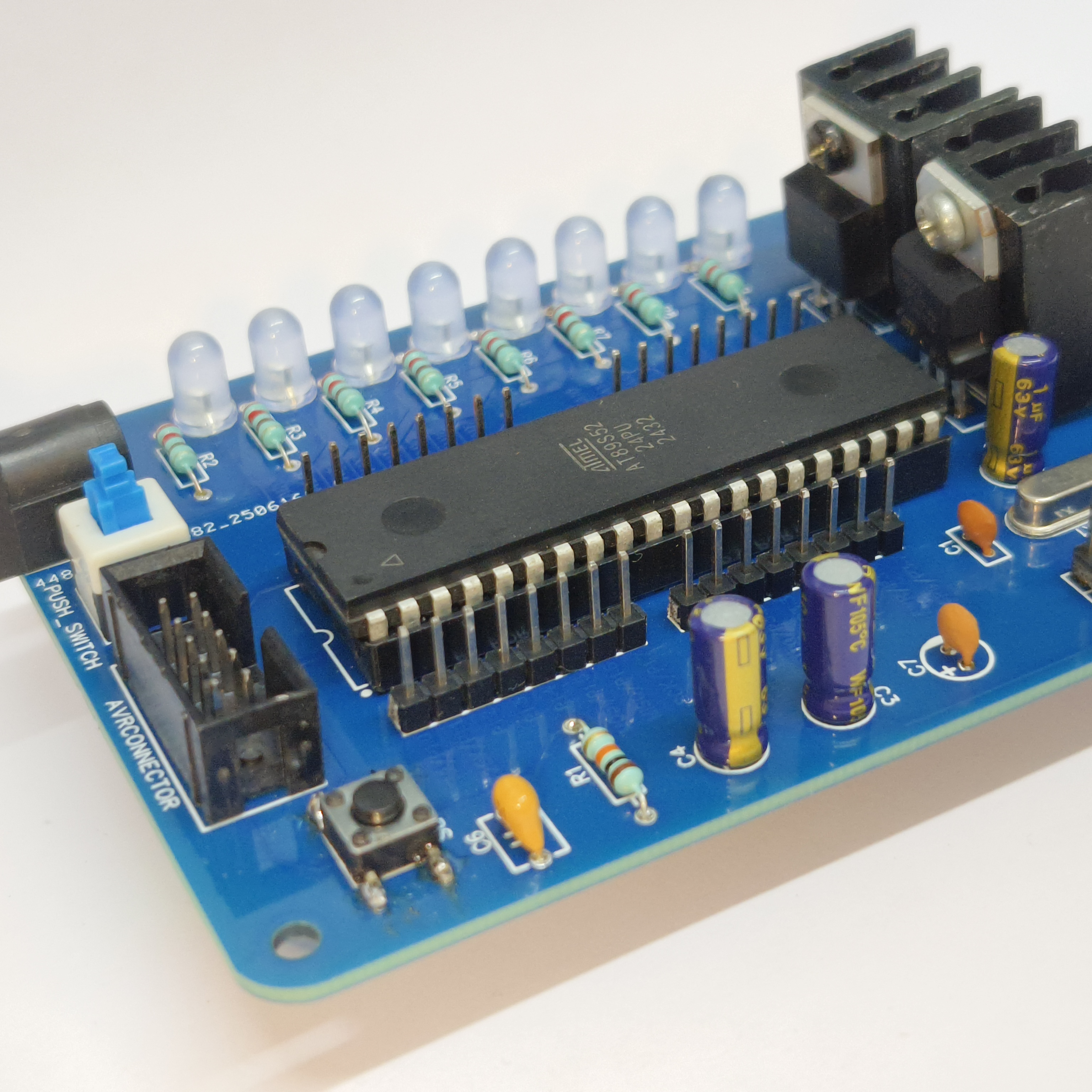

The Basic 8051 Microcontroller Programming Board
The Basic 8051 Microcontroller Programming Board is a self-designed, cost-effective development platform built around the AT89S52 microcontroller, designed to foster core embedded systems knowledge among students, hobbyists, and aspiring engineers. Tailored for educational and prototyping purposes, this board enables users to explore essential microcontroller functionalities, including digital I/O control, LED interfacing, UART communication, and timer operations.

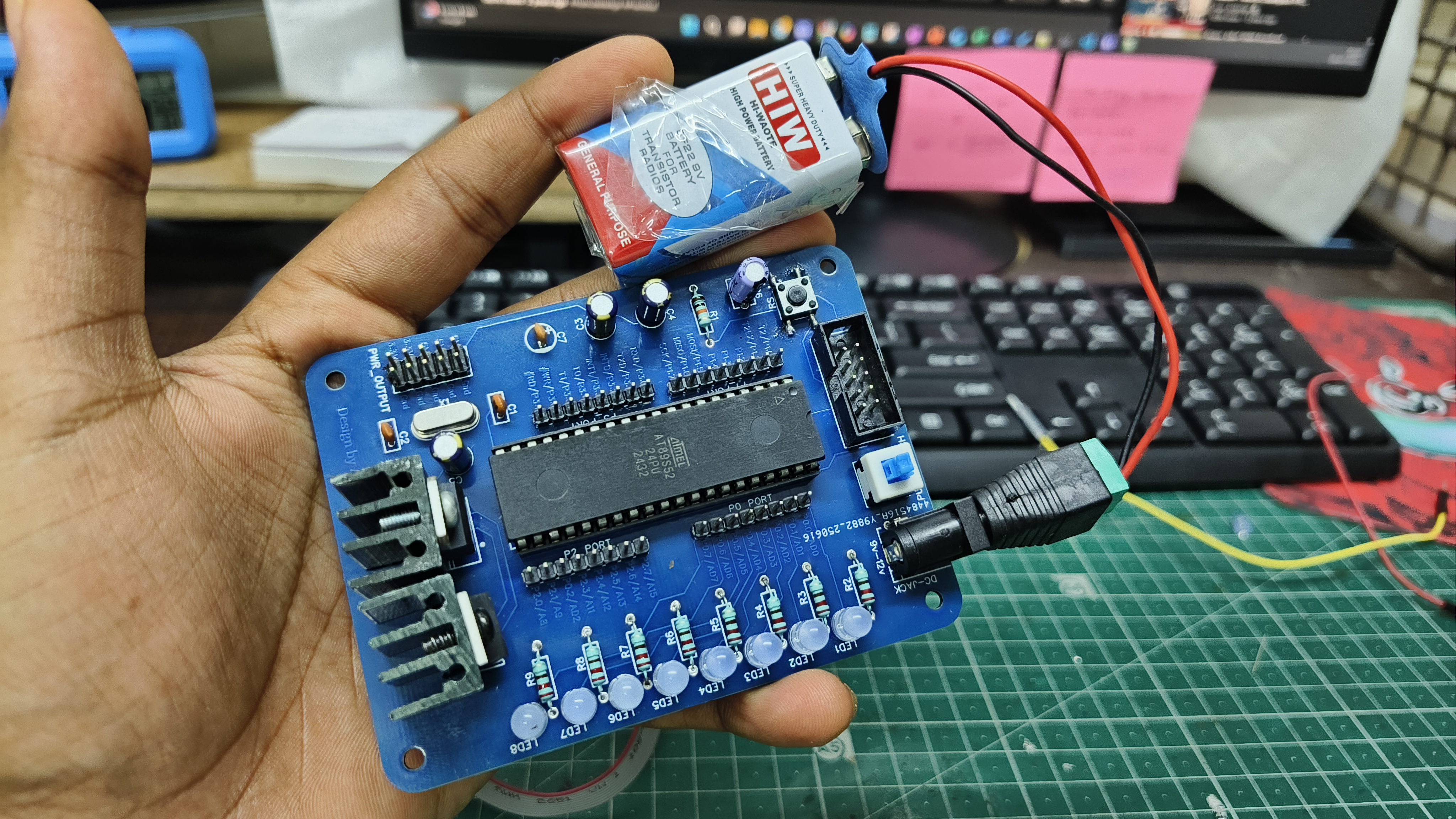

Compact and beginner-friendly, the board supports direct integration with breadboards, thanks to its well-aligned headers and dedicated 5V and 3.3V power outputs, making it suitable for powering external sensors and modules. The inclusion of a battery-operated power system eliminates the dependency on external adapters, increasing portability and versatility for field demonstrations or mobile applications.
As embedded systems continue to shape the backbone of modern electronics, there is an increasing demand for practical tools that go beyond simulation and foster real hardware understanding. The Basic 8051 Programming Board has been developed with this purpose to provide an accessible, compact, and cost-effective platform that empowers students and beginners to explore the fundamentals of embedded systems hands-on. Built around the AT89S52 microcontroller, this board includes essential features such as an onboard regulated 5V/3.3V power supply, USBasp ISP programming support, and a breadboard-compatible layout. Its clean, labelled I/O headers make peripheral interfacing easy and intuitive, while battery-powered support enhances portability for mobile or field-based learning environments. Unlike generic plug-and-play modules, this board promotes real ICbased learning, offering users a deeper understanding of microcontroller architecture, memory organization, and low-level programming in Embedded C and Assembly.
- Microcontroller: AT89S52 (8051 Architecture)
- Clock Speed: 12 MHz
- Power Supply: Onboard 5V/3.3V Regulated Supply, Battery Operated
- Programming Interface: USBasp ISP Support

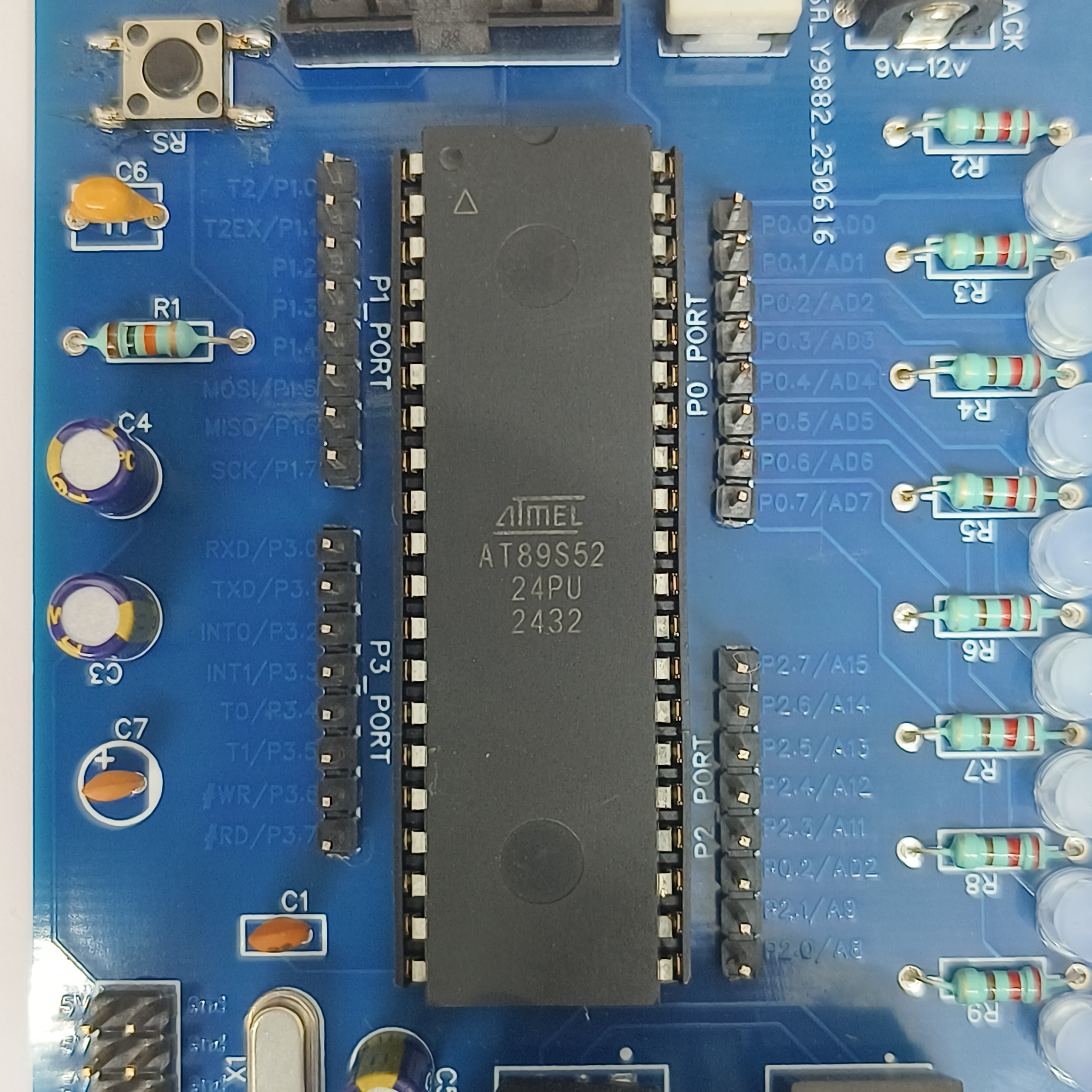

- I/O Headers: Clearly Labelled Digital I/O Pins, UART, Timers

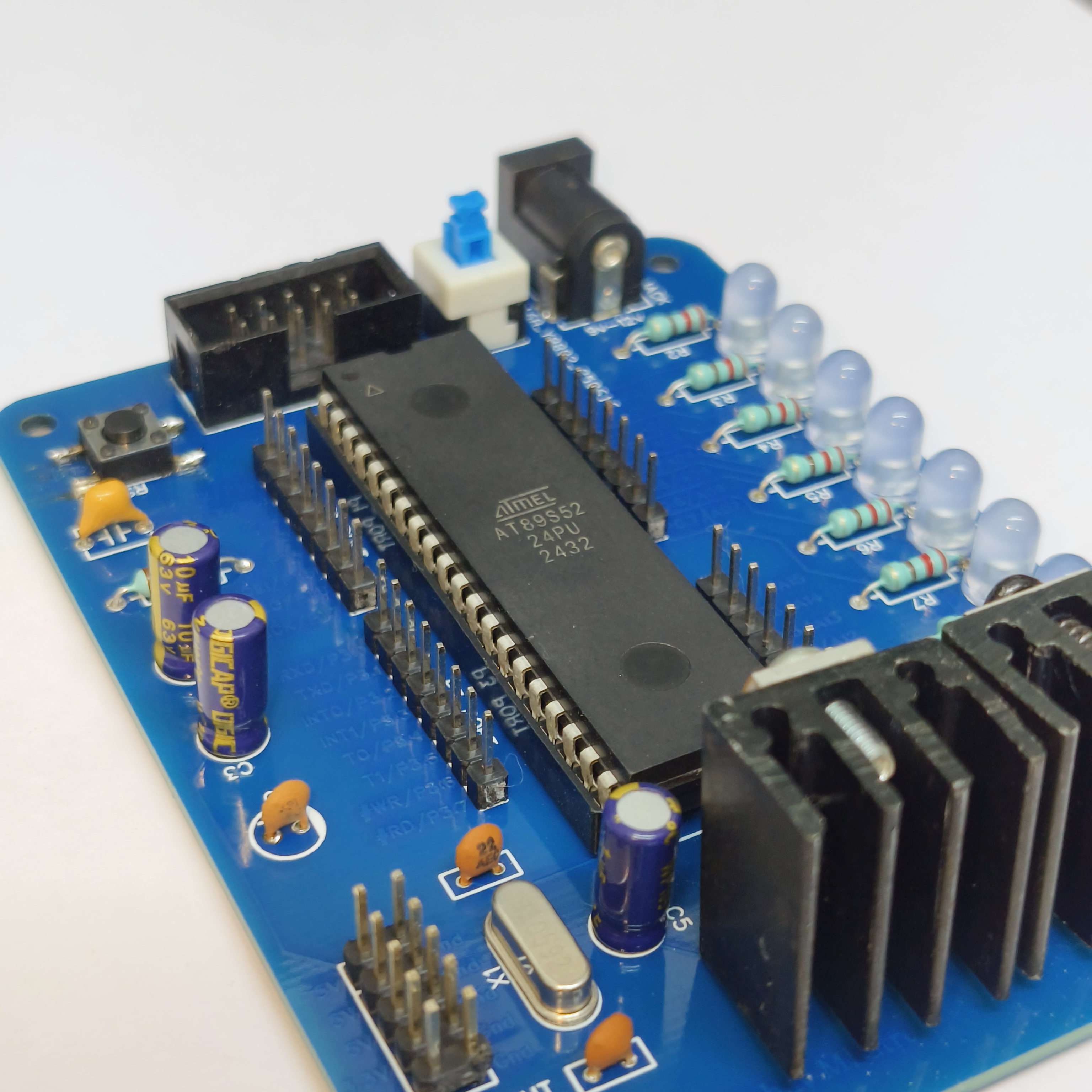

- Additional Features: Breadboard Compatible Layout, Status LEDs
